Manufacturers of PHARMACEUTICAL MACHINERIES
PRODUCTS

Dry Heat Sterilizer
Salient Features:
 Chamber is made from AISI 304/316.
The Entire sterilizer is built in SS 304.
Sterilization of glass containers like ampoules, vials, etc.
Automatic operating controls: relay or PLC based.
Sensors for continues monitoring of temperature on scanner/ printer/ data logger with optional printing of F+ Values.
Hepa Filter exhaust Arrangement.
Temperature distribution with in +2.0 Dig.C
Vertical Sliding steam sterilizer
Salient Features:
Sliding Door With Interlocks
Superior heat distribution band (within 1.0 Dig.C )
Inflatable Gaskets for Sealing.
Unique Auto Drain Facility.
Drain Line with Condenser.
Complete Validation Documentation Including Plc Validation Protocols as per Gamp4
Any Tailor Made Sizes Available.
Pc Based Controls and Data Acquisition Options Available. (Scada)

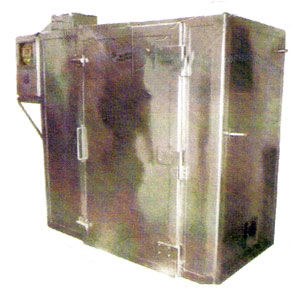

Tray Dryer
Salient Features:
Models Available 6, 12, 24, 48, 96 & 192 Trays.
Double Wall Construction.
Rigid S.S. Framework.
Glass Wool Insulated.
Heating Media- Electric/ Steam for Uniform Drying.
Unit With Air Inlet, Air Filter.
Adjustable Damper (Outlet).
Single Insulated & Self Locking Door. One Fan For Air Circulation Inside The Area. (Flp Motor Available as Option).
Moc S.S 304/316/3161
Sophisticated Control Panel With On /Off Push Buttons, Indication Lamps.
Multi Column Distillation
Salient Features:
 Highest Effciency by Optimized Design According to cGMP
Lowest Consumption of Heating Steam and Cooling Water Guarantee.
Highest Reliability by Proven Distillation Technique.
High Quality Fabrication as well as Smooth Surface Polishing.
All Parts In Contact with Product are Made of High Quality Stainless Steel (AISI 316L).
Storage Tank
Salient Features:
Sturdy Construction with LID/without LID.
Available Size- 10 Ltrs To 5000 Ltrs.
MOC S.S 304/316/316L.
Recommended for Storing Chemicals Syrups, Pesticides, Food Products etc.
Option: Jacketed with Heating Arrangement.
Cylindrical / Spherical.
With Stirrer / Homogenizer.
Legs with/ without Castor Wheel.
Pressure Vessel
Salient Features:
Ideal in Injectable Section For Filling Sterile Products.
Provided with Inlet and Outlet Nozzle, Safety Valve.
Joints are Argon Welded..
A long Tube is Provided to Ensure Complete Drawing Out of the Fluid.
Working Pressure of 3kg/ cm. Square.
For Air Tight Sealing Silicon "O" Ring is Used.
Available Size- 5 Ltrs, 10 Ltrs, 20 Ltrs,50 Ltrs,100 & 200 Ltrs.
MOC S.S 304/316/316L.
Automatic Liquid/ Oral Process Plant
Salient Features:
MOC S.S 304/316/316L
Top Mounting Stirrer/ Homogenizer also Available
As per Customer Specification Design & Develop.
Electric/ Steam Heating also Possible for Smaller Capacity.
Automatic Ointment / Cream Mfg. Plant
Salient Features:
Capacity from 50 kg. To 1000 kg.
Online Colladial Mill/ Micronizer.
Hydrualic Lid Lifting for Mfg. Vessel.
Dual Anchor Agitator.
Equipped With CIP &SIP Facility.
MOC SS 316/316L.
Bottom Homogenizer.
Fully/ Semi Automatic Operation.
